Skin Temperature Screening Solution

FLIR EST™ Kiosk

Zur Supportseite

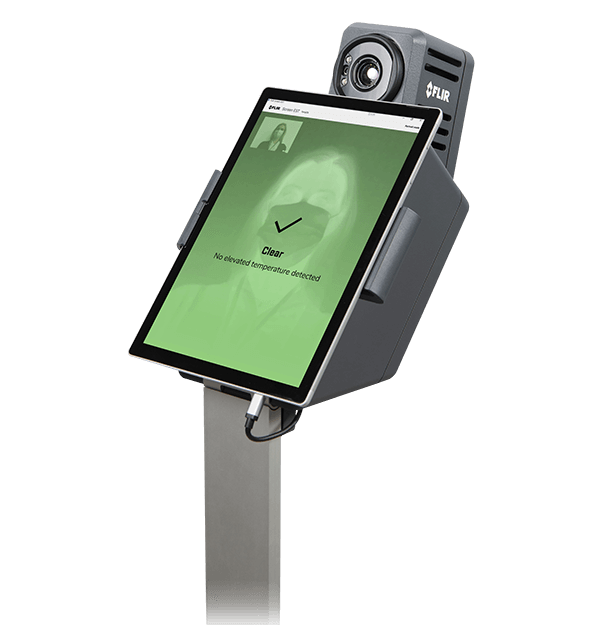

product image

Quickly screen passengers, customers, or employees for signs of elevated skin temperature with this turnkey solution. The FLIR EST Kiosk combines the temperature measurement capabilities of a thermal imaging camera plus FLIR Screen-EST™ software with the convenience of a tablet display and floor stand. This kiosk sets up in minutes, offering fully automated, self-service screening that targets the inner canthus (corner of the eye) for accurate skin temperature measurement.

Kontakt zum Vertriebspartner

Faster, Easier Skin Temperature Screening

  • Easy Setup and Operation

    Ready to use right out of the box with pre-installed FLIR Screen-EST software, customizable instructions, and alert displays.

  • Efficient, Consistent Results

    Automatically targets the inner canthus for fast, accurate screening.

  • Accurate Temperature Screening

    Advanced factory calibration combined with relative measurement methodology ensures screening accuracy and avoids false-positives.

Kontakt zum Vertriebspartner

Sie möchten weitere Informationen zu diesem Produkt erhalten?

Rufen Sie 0049 69-80884980 und sprechen Sie mit einem erfahrenen Produktexperten.

Technische Daten
Zweck Digitalausgang
As function of alarm, output to external device, for example when the screening alarm is triggered
Digitalausgänge
3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC)
Kodierung
Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric
Ethernetschnittstelle
Wired, Wi-Fi
WLAN
(optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc)‎ or infrastructure (network)‎
Blendenzahl
1.3
Bildfrequenz
30 Hz
Thermische Empfindlichkeit / NETD
<40 mK at 30°C (86°F)
Genauigkeit
±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software
Kommunikation und Datenspeicher
Digitalausgänge
3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC)
Ethernet
Control, result, image, and power
Ethernetkommunikation
TCP/IP socket-based FLIR proprietary
Ethernetschnittstelle
Wired, Wi-Fi
Ethernetstandard
IEEE 802.3
Ethernettyp
1000 Mbps
Kodierung
Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric
WLAN
(optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc)‎ or infrastructure (network)‎
Zweck Digitalausgang
As function of alarm, output to external device, for example when the screening alarm is triggered
Bildgebung und optische Daten
Bildfrequenz
30 Hz
Blendenzahl
1.3
Brennweite
17 mm (0.67 in)
Detektorraster
17 µm
Focal Plane Array (FPA)
Uncooled microbolometer
Fokus
One-shot contrast, motorized, manual
Image Source
Video stream 0 – visual / IR / MSX®; Video stream 1 – visual; Radiometric video stream – IR
IR-Auflösung
464 × 348
Kontrastverbesserung
FSX® / Histogram equalization (IR only)
Mindestfokusabstand
0.15 m (0.49 ft)
Objektiverkennung
Automatic
Overlay
Video stream 0 – With/Without; Video stream 1 – No
Pixelformat
Video stream – YUV411; Radiometric stream – MONO 16
Räumliche Auflösung (IFOV)
0.90 mrad/pixel
Sichtfeld (FOV)
24° × 18°
Spektralbereich
7.5–14 µm
Streaming-Auflösung
Video stream 0 – 640 × 480 pixels; Video stream 1 – 1280 × 960 pixels; Radiometric stream – 464 × 348 pixels
Thermische Empfindlichkeit / NETD
<40 mK at 30°C (86°F)
Videostreaming
Bit rate set through camera web
Messung und Analyse
Genauigkeit
±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software
Objekttemperaturbereich
15°C to 45°C (59°F to 113°F)
Allgemeine Angaben
Abmessungen (L × B × H)
360 × 270 × 1300 mm (14 × 11 × 51.2 in)
Gewicht
8.3 kg (18 lb.)
Lieferumfang
Camera, Surface® Pro7 tablet, tablet stand, cables (Europe, UK, US), screening position floor sticker (T131181), FLIR Screen-EST™ license card, printed documentation
Umgebungsfaktoren und Zertifizierungen
Garantie
http://www.flir.com/warranty/
Stromversorgung
Betrieb mit externer Stromversorgung
24/48 V DC 8 W max
External Voltage
Allowed range 18–56 V DC
Leistungsaufnahme
7.5 W at 24 V DC typical; 7.8 W at 48 V DC typical; 8.1 W at 48 V PoE typical
Stromversorgungsanschluss
Camera: M12 12-pin A-coded, Male (shared with Digital I/O)
Benutzeroberfläche
Webschnittstelle
Yes
